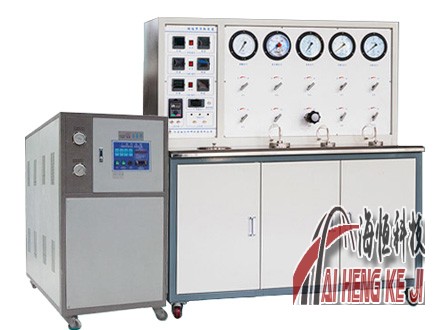

SFEC120-50-05超临界二氧化碳萃取装置

    超临界萃取设备升级产品，设备部件工作更稳定，工艺结构合理优化，满足功能需求的前提下，更紧凑美观。
    该装置主要由：萃取釜、分离釜、CO2高压泵、夹带剂泵、制冷系统、CO2贮罐、换热系统、净化系统、流量计、温度控制系统、压力自控系统、安全保护装置、清洗系统等组成。附属设备和系统都能满足超临界萃取主系统的需求和流程图要求。
一、萃取釜：
    配有水夹套循环加热系统，温度可调，配固、液料用料筒
    材质     1Cr18Ni9Ti
    容积     5L
    工作压力  50MPa
二、分离釜：
    配有水夹套循环加热系统，温度可调
    材质     1Cr18Ni9Ti
    容积     2L×2
    工作压力  30MPa
三、CO2高压泵：
    流量（三柱塞）  排量50L/h    变频可调
    工作压力     50MPa    泵头带冷却系统
四、夹带剂泵：
    流量（双柱塞）  1/4～4L/h    机械调节
    工作压力    50MPa
五、制冷系统：
    制冷量    4470Kcal/h   风冷
    温度控制范围    -5℃～+15℃   满足工艺要求
六、换热系统：
    材质      1Cr18Ni9Ti
    规格        Φ6×1
    工作压力   50MPa
    配水夹套循环加热系统，温度可调
七、净化系统：
    材质      1Cr18Ni9Ti
    工作压力   50MPa
八、CO2贮罐：
    材质        1Cr18Ni9Ti
    容积        4L
    工作压力   16MPa
九、流量计：
    金属管质量流量计，量程为6.3~63L/h，带二次仪表
十、温度控制系统：
    控制范围      室温~85℃可调（水浴）
    动态控温精度   ±1℃    数显双屏
十一、安全保护装置：
    高压泵出口配电接点压力表、设定工作压力、超压自动停泵保护。
    萃取釜、分离釜、根据工作压力，分别配安全阀，超压自动泄压。
十二、管路：
    阀门、管件    DW6
    接触流体的容器、阀门、管件、管线均采用1Cr18Ni9Ti不锈钢制作。阀门用阀杆经特殊热处理，坚久耐用。
十三、装置特点：
    萃到釜压环快速打开，O型圈为进口，使用周期4个月以上。
    CO2循环使用。
十四、其它：
    电源：   三相五线制     380V/50HZ     11kW
    CO2：   食品级≥99.5%，单瓶净重≥22Kg  用户自备
    安装尺寸：2700×1200×1750m/m，外加操作空间。

I. Overview:

Supercritical extraction means that at a certain pressure and appropriate temperature, in the extraction cylinder, the solvent fully contacts with the extracted substance, and the solute diffuses into the solvent, and then the working conditions are changed in the separator to precipitate the dissolved substance, so as to achieve the purpose of separation.

Supercritical extraction has the following characteristics:

The extraction temperature is low, and the product will not be decomposed.

Selective extraction can be achieved by controlling temperature and pressure.

There is no solvent residue in the product.

The solvent can be recycled.

No environmental pollution.

Supercritical fluid extraction technology uses CO2 as solvent, which has the following advantages:

The supercritical state of CO2 is easy to realize.

No toxic pollution to food and medicine.

It has the function of preventing bacterial activity.

It is not easy to burn and has good chemical stability.

Low price and good economy.

Second, the device composition process:

The device mainly consists of a refrigeration system, a CO2 storage tank, a mixer, a filter, an extraction kettle, a separation kettle, a CO2 injection pump, a carrier pump, a pressure control system, a flowmeter, a safety protection device, an electric control cabinet, a cabinet frame, a panel and the like.

III. Technical indicators of main components:

3-1. Extraction kettle:

The charging barrel for solid and liquid materials is equipped with a water jacket circulating heating system with adjustable temperature.

Material stainless steel 316

Volume 5L

Working pressure ≤50MPa

3-2, separation kettle:

The main container for material separation, in this process, the separation effect is better by changing the pressure and temperature, and it is equipped with a water jacket circulating heating system with adjustable temperature.

Material stainless steel 316

Two sets with a volume of 2×2L

Working pressure ≤30MPa

3-3, CO2 high-pressure pump:

The CO2 liquid output is pressurized, and the pump head is made of wear-resistant special material and equipped with a cooling circulation system of the pump head, so as to prevent the friction of the pump head from heating up, prolong the service life of the pump, prevent cavitation and affect the stable supply of fluid.

The flow rate is 50L/h and the frequency conversion is adjustable.

Working pressure ≤50MPa

3-4, entrainer pump:

1/4-4L/h mechanical adjustment of flow rate

Working pressure ≤50MPa

3-5, refrigeration system:

The refrigerating capacity is 4700Kcal/h, and it is air cooled.

The temperature control range is 5℃ ~ 7℃

3-6, heat exchange system:

Change the temperature in the system through heat exchange.

Material stainless steel 316

Specification φ 6× 1 coil

Working pressure ≤50MPa

Water distribution jacket circulating heating system with adjustable temperature.

3-7, purification system:

Material stainless steel 316

Working pressure ≤50MPa

3-8, CO2 storage tank:

Material stainless steel 316

Volume 4L

Working pressure 16MPa

3-9, flowmeter:

Metal tube float flowmeter digital display remote transmission 6.3 ~ 63l/h shows instantaneous and cumulative flow respectively.

3-10, temperature control system:

The control range is adjustable from room temperature to 85℃ (water bath)

Dynamic temperature control accuracy 1℃ Double-screen digital display, programmed temperature control.

3-11, cleaning system:

The equipment is designed with a cleaning loop, which can clean the separator first and then clean the whole.

3-12, safety protection device:

Safety system is the most important part of equipment, which is divided into hard safety system and soft safety system.

Hard safety system: a safety control system that can be realized even when the equipment is in the state of no electricity, including safety valves and one-way valves. The main components such as extraction kettle and separation kettle are equipped with their own independent safety valves (the protection pressure is independently calibrated according to the pressure range of the components), and the overpressure is automatically released. After the pressure is normal, it will automatically recover to protect the safety of the components at all times.

Soft safety system: integrated circuit safety control, electric contact pressure instruments, pressure and water level alarm safety control, etc. Once triggered, the soft safety system can not work normally until the problem is solved, and it is ineffective to forcibly start the power device. After the problem is solved, it will return to normal as a necessary supplement to the hard safety system.

Power safety device: the range of system pressure can be set. If the pressure triggers the upper limit, the power output will be stopped to ensure that the system pressure will not rise again. If the pressure is lower than the lower limit, the power output will be started, which can be set as dynamic protection to adjust the safety measures of the equipment, so as to ensure the safety of the equipment.

3-13, pipeline:

The pipeline adopts valve pipe fittings with specifications of DW6/50MPa series and made of stainless steel 316. The valve stem is durable after special heat treatment, and the valve layout fully considers the maintenance and process control of all parts of the equipment.

3-14, electrical system:

Brand electrical components are used for control, and the power cord adopts the three-phase five-wire system of international common standards.

3-15, box bracket:

According to the requirements of modern laboratory, the shape design of the equipment is beautiful and generous. The operation panel is made of stainless steel laser, which is clear at a glance, well arranged and harmonious with modern laboratories.
